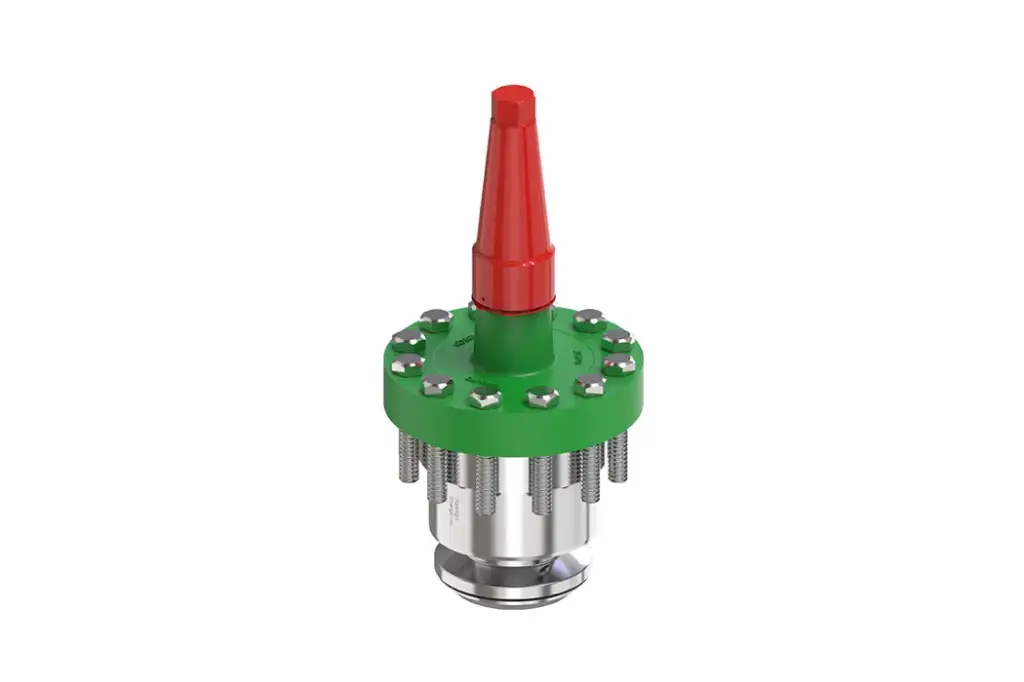

SVL-140B Parts program
SVL-140B Parts program DN 50 - 150 for industrial CO2 applications
SVL Flexline™ platform is now expanding to 140 bar MWP to meet an increasing demand of large manual valves in industrial design for large scale R744 transcritical CO2 systems.
Starting up a new range of manual valves
First two functions in the new and separate range is the SVA Shut-Off valve and the FIA strainer housing, with the specific name SVA-140B and FIA-140B, referring to the 140 bar MWP. The valves are available in angle and straight connection in sizes from DN50 to DN150.
It is designed for favorable flow conditions and the FIA-140B can be fitted with the existing range of stainless-steel plain and pleated filter inserts from 150 to 500 microns.
Strainer inserts are shared with other FIA valves in the SVL platform.
The valves are especially applicable in medium and high-pressure part of the CO2 transcritical system:
- Upstream to HP valve
- Upstream to By-pass valve
- Upstream to MT compressors
- Upstream to Hot gas defrost valves
Feature and Benefits
- Range from DN 50 to 150 as Parts program
- Straight and angle version valve body
- Arrow for flow direction on valve body
- Replaceable top part or filter insert
- Refrigerant neutral gasket between valve body and top part
- Pressure PS engraved in valve body
- Buttweld and brazing connections
