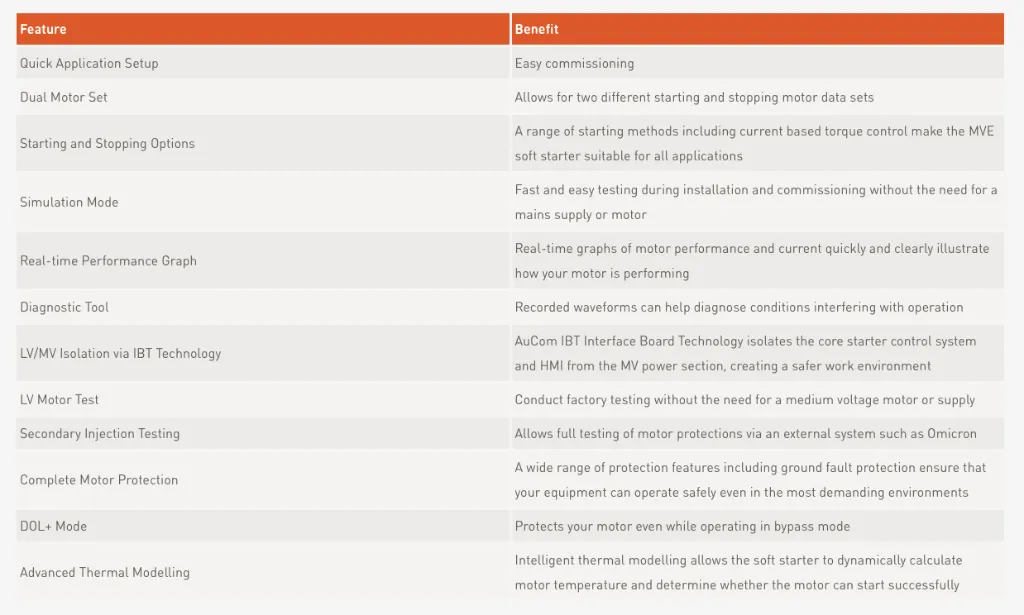

M-MVE Soft Starters are an integrated solution for motor control and protection. Advanced soft start and soft stop functions and an extensive motor and system protection are easily implemented via a user-friendly interface and complete commissioning diagnostics. Housed in an IEC style enclosure M-MVE starters are compact with a small footprint making them ideal for space constrained installs. Available in both single and lineup configurations.
M-Series Panel Specifications
- Rated voltage: 3.6 kV - 12 kV
- Rated busbar current: up to 630 A
- Rated short time withstand current/peak: up to 31.5 kA for 1 seconds/ up to 82 KA
- Partition classification: Pl
- Loss of service continuity: LSC1/LSC2
- IP4X protection rating (IP54 optional)
- Altitude: < 1000 m (higher with derating)
- Ambient temperature: -10 °C to 60 °C (above 50 °C with derating]
- Colour painting: RAL7032 (other colours optional)
