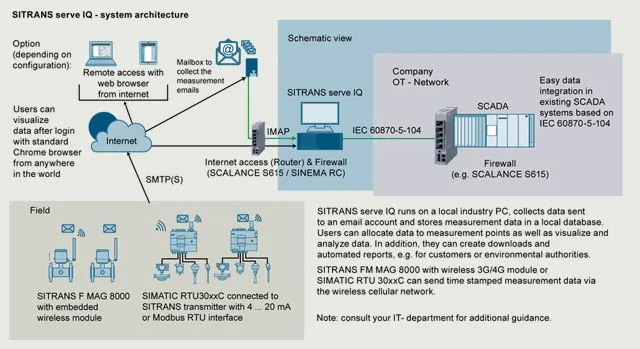

SITRANS serve IQ is an on-premise application that acquires measurement data sent by email (CSV file attachments) from remote sensors. The data is stored locally on an Industry PC and visualized in charts and tables. If configured, authorized users can access this on-premise application via the Internet.
Optionally, users can create and send customized reports on measurement data and log events in a log-book to, for example, document services. An interface for forwarding data to a SCADA system using the telemetry protocol IEC 60870-5-104 is also available.
Benefits
Widely distributed measuring points are used in a range of applications and industries. These include:
- Flow measurement in water supply networks.
- Level measurement in tanks and silos.
- Height measurement in bodies of water.
Today, remote devices send measurement data and alarms in csv-format via email (e.g. SITRANS MAG 8000 3G/4G or SIMATIC RTU 30xxC).
SITRANS serve IQ supports you by:
- Reading and parsing the email attachment containing the measurement data from the email address provided by you.
- Visualizing historical and current process values in charts or tables and displaying alarms.
- As customers or environmental authorities ask for measurement data, users can create customized reports on totalizer values and send them automatically by email. This optional license also enables the logbook functionality that allows users to comment on measurement data or to document service activities.
- Forwarding process values to SCADA via the optional telemetry protocol IEC 60870-5-104.
- If enabled, users can access the application from the Internet using the Google Chrome web-browser. Access is limited to the organization holding the license. Additional measures to ensure IT-security are required (e.g. firewall).
