Micro850

Micro850

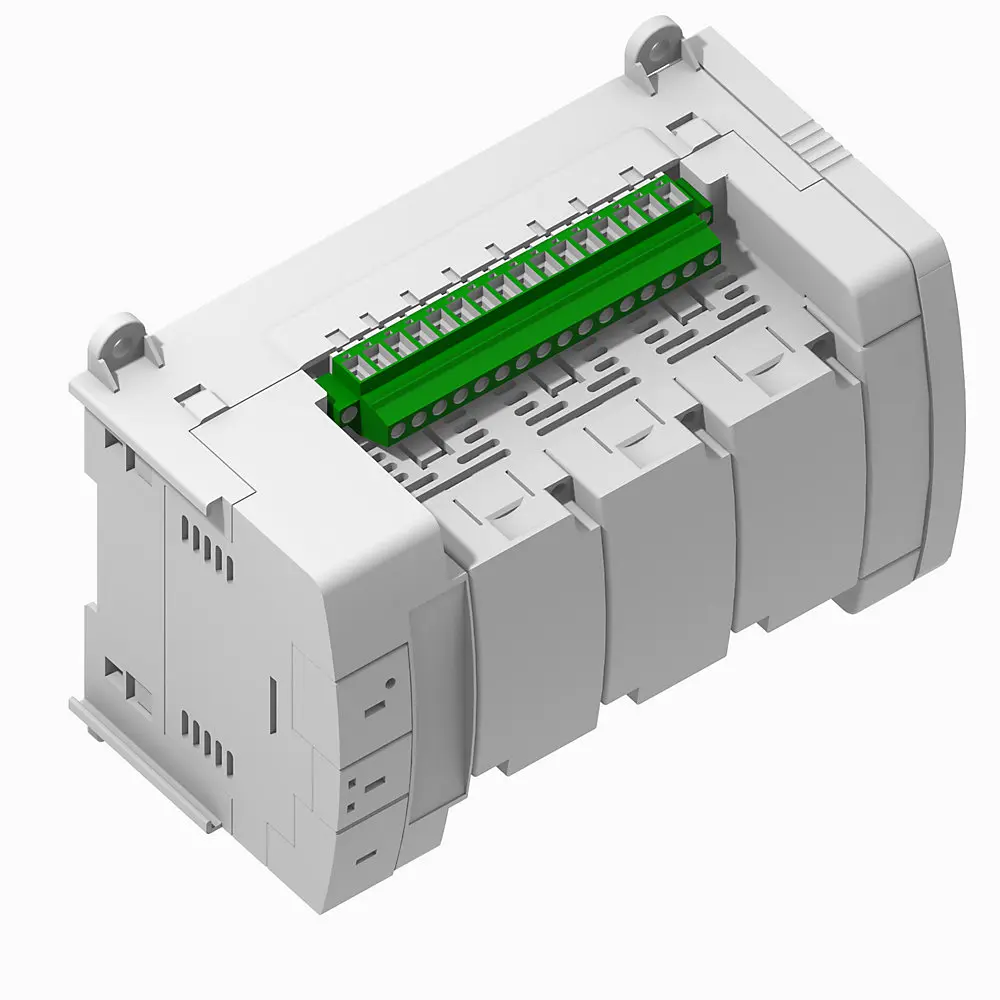

Our Bulletin 2080 Micro850® programmable logic controllers (PLC) are designed for larger standalone machine control applications that require flexible communications and greater I/O capabilities. These controllers support up to 192 I/O points with high-performance I/O, interrupts, and Pulse Train Output (PTO) motion plus embedded Ethernet port and Micro800™ Expansion I/O modules.

Catalogs 2080-LC50-xxxx are discontinued and no longer available for sale as of July 31, 2023. Fast forward to the latest technology by migrating to our newer Micro850® 2080-L50E controllers and Connected Components Workbench™ software version 20.01 or later.

What’s New with Controller Firmware Revision 23: Mitigate Conversion Risk and Increase Overall Efficiency

Enable a faster, simpler MicroLogix™ to Micro800™ controller modernization with the expanded capabilities and functionalities in Micro850 2080-L50E controllers.

Key features and benefits:

  • Ability to retain legacy communication network and monitor controller variables changes easily through the expanded Programmable Controller Communication Commands (PCCC) support and remote LCD connectivity
  • Familiar user experience and workflows, similar to MicroLogix 1400 controller
  • Compatible with Connected Components Workbench™ software version 23 as the minimum requirement

Overview

  • Offers 24-point and 48-point controllers
  • Includes 100 kHz speed high-speed counter (HSC) inputs on 24V DC models
  • Provides embedded communications via USB programming port, non-isolated serial port (for RS-232 and RS-485) and Ethernet port
  • Supports up to five Micro800 plug-in modules and four expansion I/O modules, up to 192 I/O points
  • Provides embedded motion capabilities by supporting as many as three axes with Pulse Train Outputs (PTO)
  • Communicates via EtherNet/IP™
  • Operates in -20…+65 °C (-4…+149 °F) temperatures
  • Supports microSD™ card for program transfer, datalog, and recipe management through plug-in module

2080-L50E Controllers

  • Offer faster Ethernet communication from controller to HMI and SCADA applications
  • Deliver enhanced connectivity with Class 1 implicit messaging capability* and expanded DF1 communications support
  • Simplify integration to PowerFlex® 520 series and Kinetix® 5100 drives through pre-defined tags*
  • Provide excellent controller performance with increased I/O response and code execution time
  • Allow easy recognition of Lx0E controller options with catalog numbers containing E, for Ethernet connectivity, after the controller series. For example: 2080-L50E
  • Work with Connected Components Workbench software version 20.01 or later

* Requires Connected Components Workbench software version 21 or later
