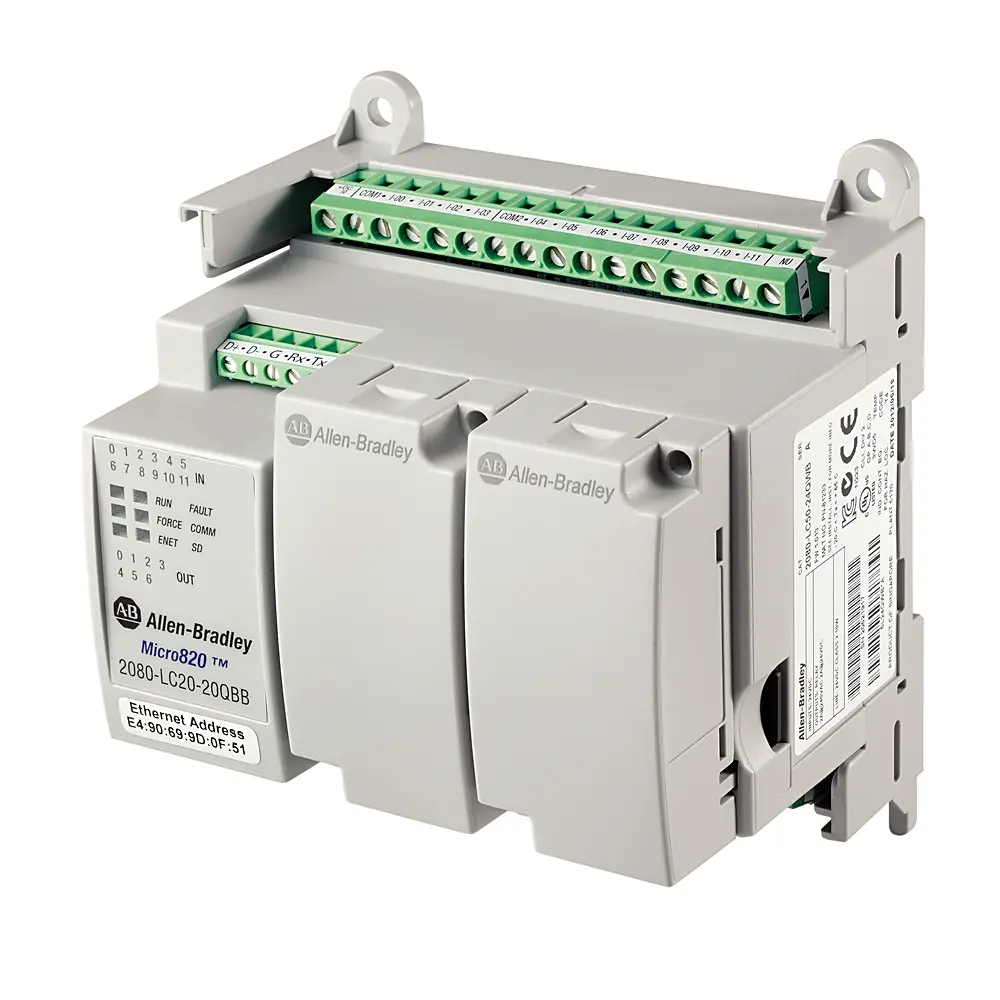

Micro820
Our Micro820® programmable logic controllers (PLC) include a nano-sized footprint and are designed for small standalone machine control and remote automation applications that require flexible communications and I/O capabilities. These controllers support up to 36 I/O points with many embedded features such as Ethernet, microSD slot for recipe and data log, and analog I/O.
What’s Coming in 2025
Optimize operational processes with the new Micro820 2080-L20E controllers. These latest controller options offer additional capabilities that simplify machine development and deployment.
- Enhanced performance on program execution, I/O response and communication
- Increased connectivity with Class 1 implicit messaging up to four nodes
- Simplified initial machine setup with a USB Type C port
- Optimized for Connected Components Workbench™ software version 23 as the minimum requirement
- Easy recognition of new controller options with catalog numbers containing E, for Ethernet connectivity, after the controller series. For example: 2080-L20E
Overview
- Offers 20-point controllers
- Provides embedded 0...10V non-isolated four channel analog input and one channel analog output for speed control of an AC drive
- Provides embedded communications via non-isolated serial port (for RS-232 and RS-485 communications) and Ethernet port
- Communicates via EtherNet/IP™
- Provides embedded support for up to four 10k thermistor temperature inputs
- Supports program download through USB with an optional 3.5-in. Remote LCD
- Supports up to two Micro800™ plug-in modules
- Supports microSD™ card for program transfer, datalog, and recipe management
