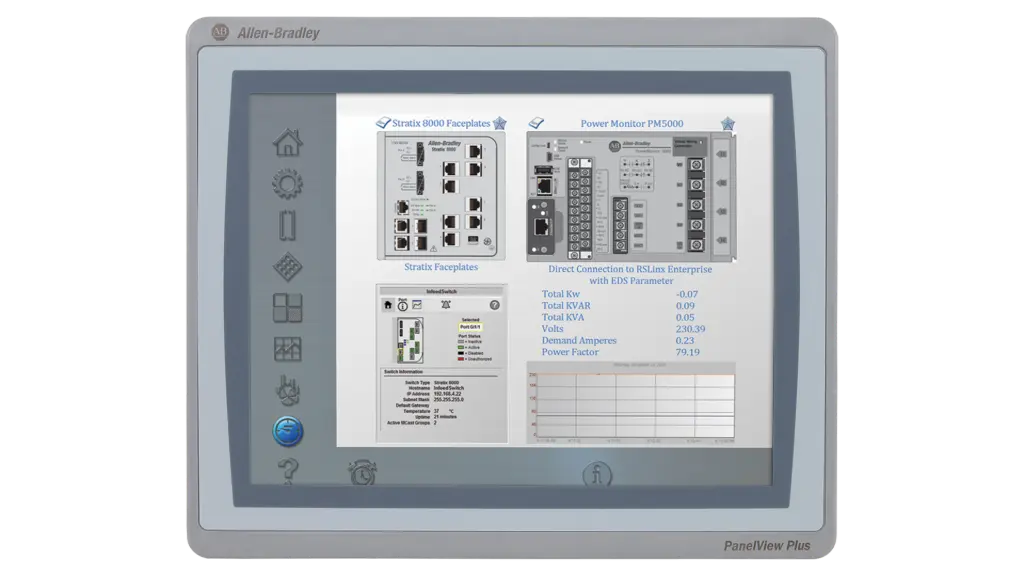

PanelView Plus 7 (2711P)

PanelView Plus 7 (2711P)

Our Bulletin 2711P PanelView™ Plus 7 Graphic Terminals are available in standard and performance versions. Our performance versions are available in conformal coat, stainless steel and on-machine (ArmorView™ Plus 7) options, offering flexibility to meet your specific needs. You can use FactoryTalk® View Machine Edition to build your application, help simplify configuration and strengthen your Integrated Architecture® solution. These terminals include Ethernet connectivity and enable you to monitor applications from remote locations with VNC server and FactoryTalk ViewPoint connectivity.

PanelView Plus 7 Standard

  • Includes Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Offers display sizes from 4...15 in. with wide screen and on-screen keypad options
  • Allows monitoring of applications from a remote location with VNC connectivity and FactoryTalk ViewPoint
  • Uses an SD card or USB drive to quickly copy and restore your application
  • Includes email and texting notification capabilities
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Offers 100 screens and 500 alarms when used with FactoryTalk Machine Edition software with connection to one controller
  • Offers Ethernet 1 x RJ45 10/100 MB Auto-MDI/MDI-X with IEEE 1588 support
  • Features single or DLR Ethernet ports for network connectivity
  • Includes option for Allen‑Bradley® branded and brandless terminals

PanelView Plus 7 Performance

  • Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics
  • Offers display sizes from 7...19 in. with wide screen and keypad options
  • Includes video playback support, which provides advanced user help capabilities
  • Allows monitoring of applications from a remote location with VNC server connectivity and FactoryTalk ViewPoint
  • Uses an SD card or USB drive to quickly copy and restore the operator interface
  • Includes email and texting notification capabilities
  • Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)
  • Features two Ethernet ports that support DLR, linear, or star network topologies
  • Includes option for Allen‑Bradley branded and brandless terminals

Conformally Coated Version

  • Available on all PanelView Plus 7 Performance versions with touch-only displays and 15 in. Keypad display
  • Severity Level GX per ANSI/ISA 71.04-2013

Stainless Steel Version

  • Offers brandless display in 9, 10, 12, and 15 in. sizes
  • Features 316 stainless steel bezel
  • Includes replaceable blue food-grade silicone gasket
  • Includes conformal coating
  • Features NSF certification
  • UL IP69 rated and tested to IP69K according to ISO 20653

ArmorView Plus 7 Version

  • Offers 12 in. display size in a fully self-enclosed panel
  • Features IP66 protection for a cabinet-free HMI solution
  • Offers sixteen standard button plate configurations
  • Includes option to individually customize buttons and switches, plus a hard-wired E-stop
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
