PanelView 5000
Our PanelView™ 5000 Graphic Terminals offer an intuitive, modern design and provide enhanced Logix integration that uses Studio 5000 View Designer® software. This integration lets engineers enter configuration information once and use it for the entire automation design. It also helps you build modern applications with high-speed HMI buttons for jogging applications, scalable vector graphics and a preconfigured system banner that provides diagnostic information.
Now available with widescreen PCAP displays up to 21.5"
- Features a modern design with a slim, aluminum bezel
- Includes Logix-based alarms to eliminate need for additional configuration
- Features automatic diagnostics that annunciate faults in capable field devices with no user programming
- Provides Logix tag extended property support to help develop richer context
- Intuitive navigation menu saves screen space and reduces configuration time
- Allows for the ability to create custom, re-usable add-on graphics to more efficiently build your applications
- Shares tags, alarms, and other data using the Studio 5000 View Designer environment automatically
- Offers emulator to test run a project without downloading to a physical terminal
- Runtime language switching will switch static screen text, tag descriptions and alarm messages from the Logix controller on demand
- Configurable screen update rates of 100, 250 or 500 milliseconds for better visualization of high-speed operations and smoother animations
- System tags for color correction enables users to adjust colors to account for ambient light
- Up to 2500 states in a state table supports applications such as large lookup tables for error codes
- Supports Project Events to automatically trigger an action without operator intervention
- Email notifications provide messaging of machine or process states to remote users
- PDF viewer allows operators to read work instructions and troubleshooting guides you have stored in the terminal
- Projects and firmware can be loaded from removable media (SD card or USB)
- Built-in VNC server supports a remote VNC client for monitoring and troubleshooting
Active Directory integration supports IT/OT convergence

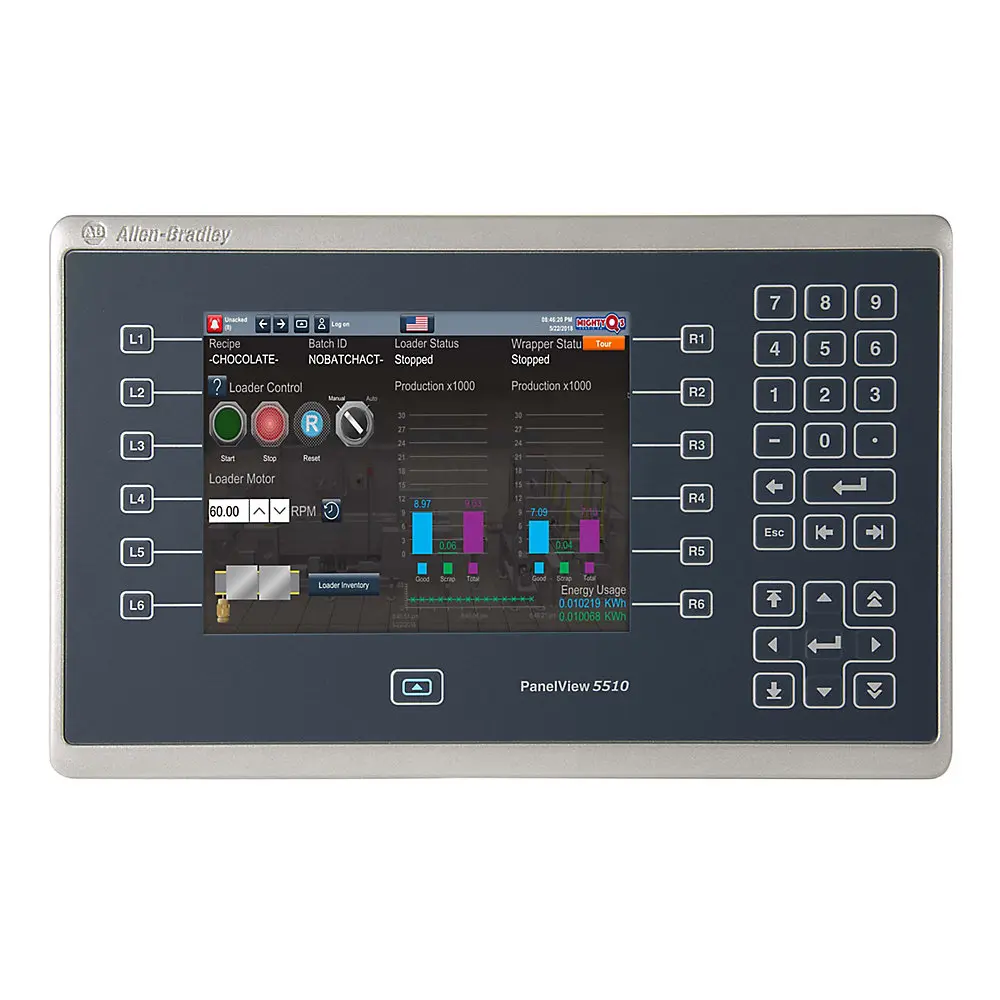

PanelView 5510 Graphic Terminals
- Offers visualization solution for larger applications
- Analog resistive versions feature physical navigation button to easily display information, plus keypad and touch option
- Analog resistive versions are available with display sizes from 7...19 in. featuring larger keypad and keyboard options for easier touch operation, particularly for gloved operators
- Projected Capacitive (PCAP) versions are available in screen sizes from 7…21.5 in. featuring aluminum and glass wide screen displays with resolutions up to full HD
- Supports 500 screens, connection to four controllers, and up to 4000 tag-based alarms per controller
- Provides 1.46 GHz dual-core processor, 1 Gb RAM, 4 Gb flash
- EtherNet/IP with DLR and embedded switch technology supports ring topology for network fault tolerance and reduced downtime
- Features HTML5-compatible browser that can display websites, videos and IP camera streams
- Stainless steel models offer IP69K rating for hygienic environments and conformal coating for greater chemical resistance
- Certified for marine and offshore applications
PanelView 5310 Graphic Terminals
- Offers a right-sized visualization solution for smaller applications
- Offers widescreen display sizes from 6...12 in.
- Supports 100 screens, connection to one controller, and 4000 tag-based alarms
- Provides 1.46 GHz processor, 1 Gb RAM, 4 Gb flash
