Not different, just better

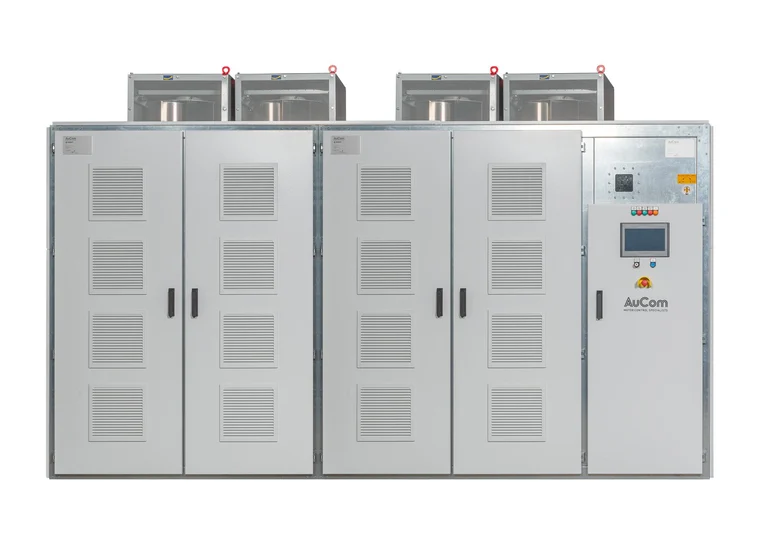

The MVH2.0 from AuCom combines all the essential features of a smart medium-voltage drive, from simple configuration to intelligent data analysis, even in the most demanding industrial applications. Thanks to Multilevel Cascaded H-Bridge technology, the MVH2.0 ensures a significant increase in both productivity and energy efficiency. A frequency drive that truly makes a difference. That’s AuCom: not different, just better!
Motor Control
Induction motors
- Advanced V/F Control
- Vector control
- Sensorless vector control
Synchronous motors
- Vector control
- Sensorless vector control
- Torque boost
- Flying start
- Auto-start on trip
- Synchronous transfer switching
- Primary-secondary control
Integration and Management
- 10.2” TFT LCD touchscreen
- Password protection
- Parameter download & upload
- Fault recording
- Power cell status monitoring
- Excitation monitoring
Protection Functions
- Overcurrent protection
- Overvoltage protection
- Overheating protection
- Current limiting protection
- Control power failure protection
- Unbalanced output protection
- Output short to ground protection
- Input imbalance protection
- Fan power failure protection
- Analog disconnection protection
- Controller offline
- Excitation failure
- Transformer, power cell and cabinet over-temperature trip protection
- Transformer and cabinet over-temperature alarms
- Fan alarm
- Transformer cabinet door alarm
- Power cell bypass alarm
- Power cell cabinet door alarm
