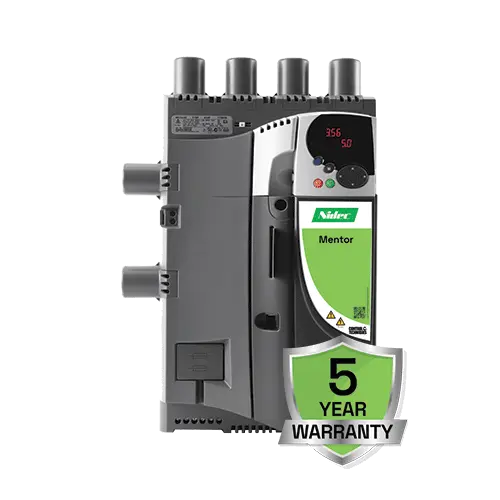

Mentor MP
Enhanced motor performance and reliability
As a world leader in DC drive technology, our innovative products are used in the most demanding applications requiring performance, reliability & energy efficiency.
Mentor MP integrates the control platform from the world’s leading intelligent AC drive technology making it the most advanced DC drive available. With optimum performance and flexible system interfacing capability, the Mentor MP drive allows you to maximize motor performance & enhance system reliability. Interface digitally with modern control equipment using Ethernet & fieldbus networks. It is very easy to retrofit from Mentor II & for high power configuration.
Features
Greater motor field control
- Built in field controller as standard
- Gives excellent field control for the majority of DC motors
- Reduces the need for external components
Enhanced field control with FXMP25
- The FXMP25 may be controlled digitally by using a standard RJ45 connection, allowing set-up by standard drive parameters
- The FXMP25 can also function in standalone mode using its integrated keypad and display
Enhanced system design
- The heatsink cooling fans are intelligently controlled and only run when required, thus increasing reliability and reducing maintenance
- Eighteen different option modules allow customisation of the drive, including fieldbus, Ethernet, I/O, extra feedback devices and motion controllers
- The drive system designer is able to embed automation and motion control within the drive, eliminating communications delays that reduce performance
Fast set-up, configuration and monitoring
- Quick and easy to set-up
- Can be configured using optional removable keypads
- Advanced autotune features help you get the best performance from your machine
- PC software and Smartcard tools for rapid commissioning
- Intelligent networked system with CTNet
- Program inbuilt controller with SyPTLite
- Develop tailored solutions for applications modules with SyPTPro
- Option modules for all common Industrial Ethernet, fieldbus networks
Retro-fit projects
- Easy integration with your existing motor, power supply, application equipment and communication networks has been ensured from the design stage
- Mentor MP brings performance and possibilities to your application with minimum migration costs
Ease of migration
- Mentor MP has been designed so existing Mentor II customers can easily migrate to the new platform
- All power terminal locations and mounting points have been retained
- Mentor MP has a much smaller frame size than the 900 A Mentor II with paralleling options to offer high power density
- CT Soft has a built in migration wizard to assist with the transfer of drive parameters and programs
- Smaller cable requirements make connections within the cubical easier. Construction of a custom-made bus-bar is not required
Motor field control
- Built in field controller as standard in every Mentor MP
- Gives excellent field control for the majority of DC motors
- Reduces the need for external components
An external motor field controller is recommended when:
- The required field current is greater than that offered by the standard drive, up to 25 A. For example, older motors with low field voltages
- The field is required to be forced down more quickly than is possible with a standard half controlled field bridge
- Applications can be implemented with simple field current reversal, without armature reversal, if machine dynamics can still be met
Control Techniques Windows-based software packages connect using Ethernet, CTNet, Serial or USB connections. Ethernet communications allow the drives to be accessed remotely, anywhere in the world.
