ICV Flexline™ control valves

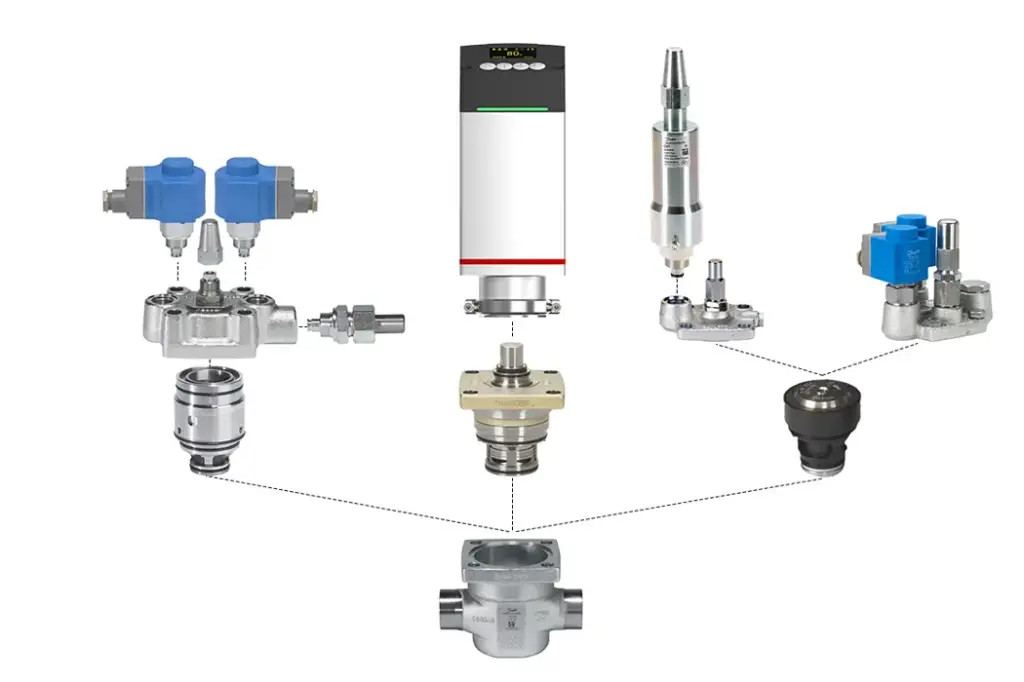

Danfoss ICV Flexline™ guarantees you a reliable, safe and green solution - both now and in the future. The product family consists of an ICS pilot operated control, ICM motor operated control and ICLX 2-step solenoid valve. All valve variants are based on one common valve body to offer outstanding flexibility.
The modular concept greatly facilitates the building of a valve that offers energy savings and reduction of down-time. Valves size between size DN 25 – DN 65 (80) are designed for a maximum working pressure of 65 bar (943 psi) and size DN 100 – DN 150 are designed for a maximum working pressure of 65 bar (943 psi). The design also efficiently handles CO₂ and other future high-pressure refrigerants.
The ICV Flexline™ offers you one platform for multiple control solutions.
Features and benefits
- 65 bar (943 psi) pressure approval in the temperature range -60 to +120°C [ -76 to 248°F]
- Approved for ammonia, CO₂ and other non-flammable refrigerants
- Low energy consumption
- Improved system performance and reliability
- Leak risk reduced by up to 80% thanks to magnetic coupling and no dynamic sealing
- Reduced service costs
- Light and small valves with only welded connections
