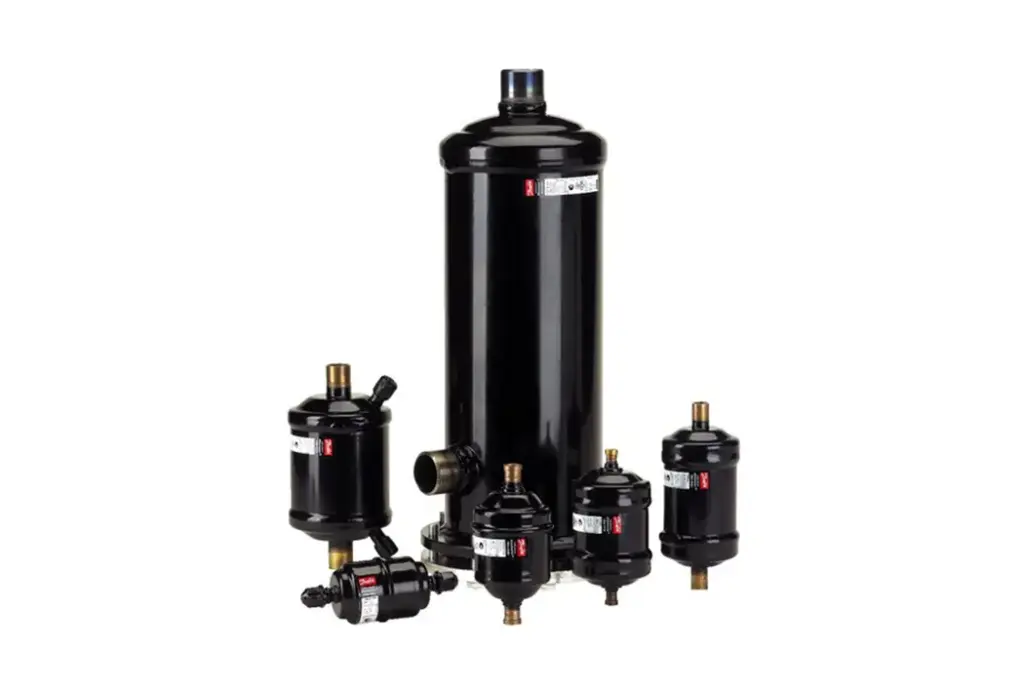

Filter driers

Filter driers

Filter driers with a high drying capacity

The DMB/DCB bi-flow filter driers ensure that refrigerant liquid always flows through the filter drier from the outer side of the filter core towards the center. In this way, all dirt particles are retained regardless of the flow direction.

DCB filter driers are composed of 80% Molecular Sieve with 20% activated alumina, which makes them a perfect core blend for systems that operate at high condensing temperatures and require high drying capacity. They are especially recommended for use with HCFC refrigerants and mineral oil and also with HFC refrigerants and polyolester oil.

DMB filter driers feature a 100% molecular sieve core with a high drying capacity, minimizing the risk of acid formation (hydrolysis). They are recommended for use with HFC and HCFC refrigerants and polyolester oil.

Features and benefits

  • Bi-flow filter driers
  • Ensure fast and effective adsorption of moisture as well as organic and inorganic acids
  • The filter’s shell is UL approved for PS/MWP up to 46 bar/667 psig
  • Available with solder (cu-plated steel) and flare connections
  • No dirt released by reversing the flow direction
HVAC-R Components Danfoss Climate Solutions
0.00 Rs. 0.00 Rs.

  • Filter drier, core, DCR, 48-DC (023U4381)
  • Filter drier, shell, DCR (023U7255)
  • Hermetic bi-flow filter drier, DCB, 16 cu.in., Steel (023Z1403)
  • Hermetic bi-flow filter drier, DCB, 30 cu.in., Steel (023Z1407)
  • Hermetic bi-flow filter drier, DMB, 30 cu.in., Copper (023Z1448)
  • Hermetic bidirectional dehydrator filter, DCB, Copper plated steel (023Z1463)
  • Hermetic filter drier, DCL, 08 cu.in., Steel (023Z5004)
  • Hermetic filter drier, DCL, 16 cu.in., Steel (023Z5010)
  • Hermetic filter drier, DCL, Copper (023Z0037)
  • Hermetic filter drier, DML, 03 cu.in., Steel (023Z5035)
  • Hermetic filter drier, DML, 03 cu.in., Steel Cu-plated (023Z4552)
  • Hermetic filter drier, DML, 05 cu.in., Copper (023Z5053)
  • Hermetic filter drier, DML, 05 cu.in., Steel (023Z5037)
  • Hermetic filter drier, DML, 05 cu.in., Steel (023Z5038)
  • Hermetic filter drier, DML, 08 cu.in., Steel (023Z5040)
  • Hermetic filter drier, DML, 08 cu.in., Steel Cu-plated (023Z4570)
  • Hermetic filter drier, DML, 08 cu.in., Steel Cu-plated (023Z4572)
  • Hermetic filter drier, DML, 16 cu.in., Steel (023Z5043)
  • Hermetic filter drier, DML, 16 cu.in., Steel (023Z5044)
  • Hermetic filter drier, DML, 16 cu.in., Steel (023Z5045)
  • Hermetic filter drier, DML, 16 cu.in., Steel Cu-plated (023Z4580)
  • Hermetic filter drier, DML, 30 cu.in., Steel (023Z0051)
  • Hermetic filter drier, DML, 30 cu.in., Steel Cu-plated (023Z4590)
  • Hermetic filter drier, DML, 41 cu.in., Steel Cu-plated (023Z4596)
