Project Completion Date: August 2022
The Commander series are simple and compact AC motor speed controllers that meet advanced requirements in a wide range of applications
- Improved energy efficiency during periods of low demand
- On board PLC & PID functionalities make advanced control easy and efficient without the need of an external controller
- Supply Loss Ride Through will keep the drive up and running through most power disturbances
✓ Set just 4 parameters to get your drive started
✓ Plug-in options for advanced control
✓ Dual Safe Torque Off (STO)
✓ Equipped with the latest energy saving features
✓ Up to 180% overload for high torque applications
✓ On board PLC
✓ Straightforward installation and commissioning

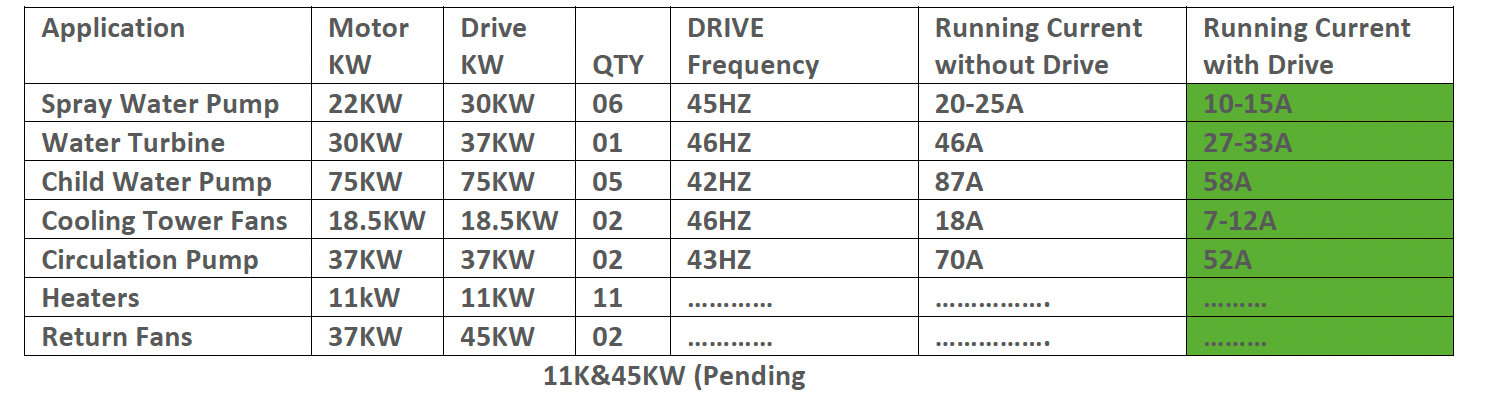

VFD Commander C200 Implementation Benefits in Different Applications
Achievements:
✓ Energy saving based on variable consumption
✓ Accurate monitoring of machines consumption
✓ Motor protection via harmonics elimination
✓ Fast payback time

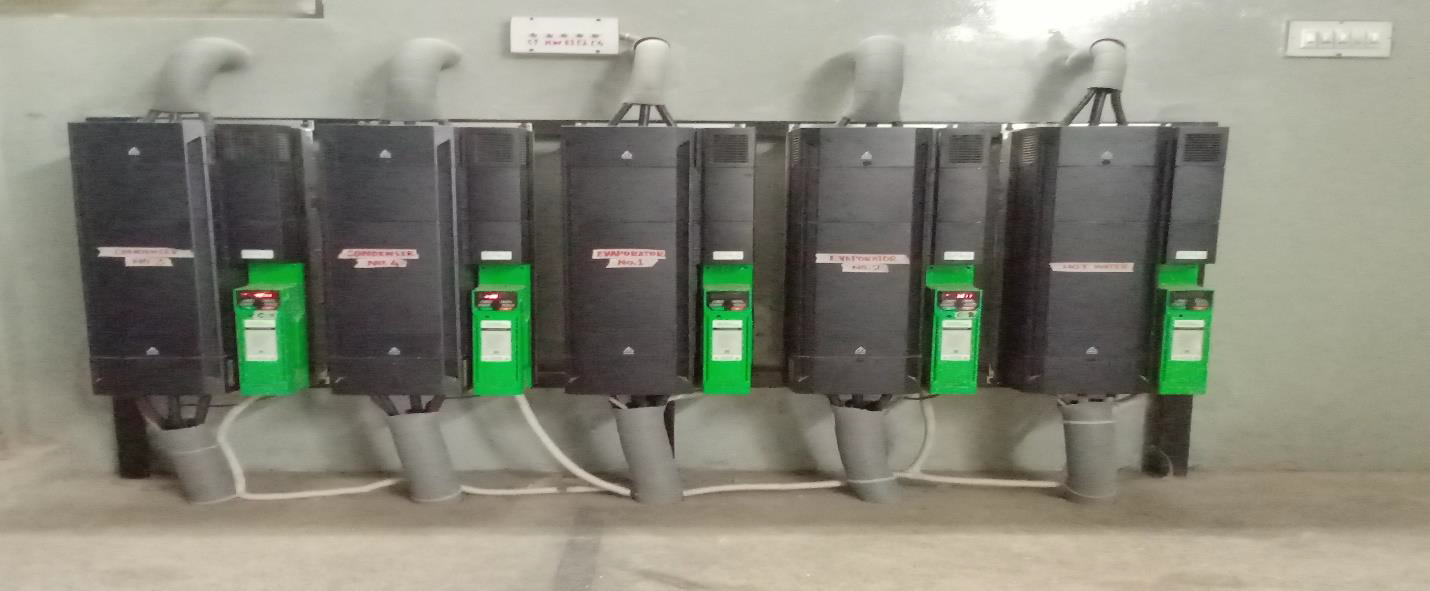

NIDEC DRIVES Commander C200 11KW-75kW Successfully Installed and commissioning
Customer Feedback on NIDEC over other Brands
- Satisfied by choosing NIDEC C200 on their main motive to save energy by using NIDEC Drives
- Proposed Energy is Saved as Promised
- Willing to Work on more Energy saving projects with Khan Brothers in next month
Point of Contact: Muhammad Manzoor SEM (Senior Electrical Manager) Crescent Textile Mills Ltd Faisalabad
Khan Brothers Technical Sales Engineer: Tanveer Hussain - Faisalabad
